CP Assembly

The final step before we could start putting the CP together was to countersink the joysticks so they would be taller on the top. We did this with a Dremel and a woodcutting wheel (part no. 543).

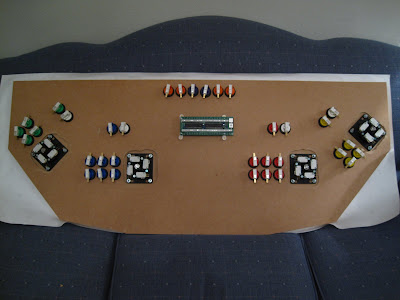

We then bolted the joysticks down (countersinking the heads on top to fit under the graphic) and mounted the feet for the I-PAC 4 controller.

We layered graphic and acrylic, then started poking holes and installing buttons (not before lining it up numerous times, clamping, unclamping, and dremeling out more acrylic for the ones that didn't fit).

Aaannnnd the front (before the graphic got trimmed):
