Tuesday, March 3, 2009

Up and Running! (for the most part)

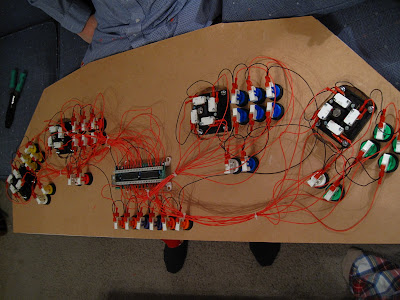

We finished wiring the CP yesterday. All in all, connections and grounds, it maybe took 3 hours total. Not bad. Here's the orgy of wires that resides under the buttons and joysticks (black is ground, red, the connections):

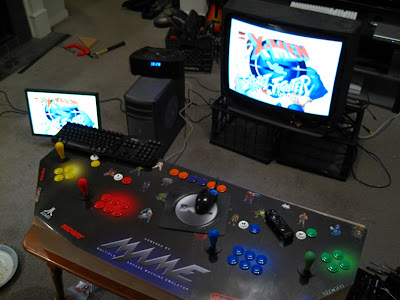

And hooked it up to the monitor (X-Men vs. Street Fighter):

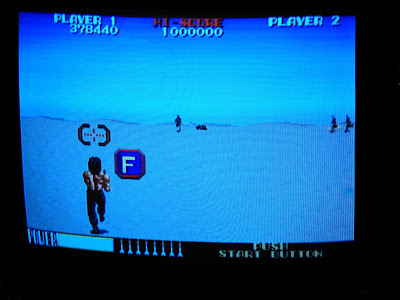

Going CRT for the monitor can't be beat. It looks like the real deal, and not distorted like it would on an LCD. Here's Rambo:

(Note: "for the most part" means that the Player 3 controls, as well as 4/6 Admin buttons don't work yet. Not sure why; we haven't done any troubleshooting (too busy playing :). Hopefully it's a quick fix.)
